Dual-Sealing Technology

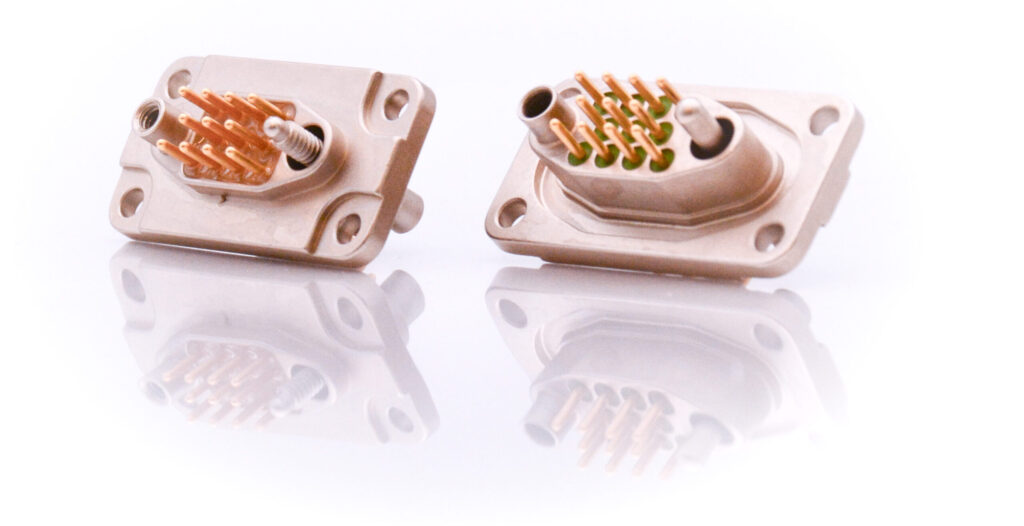

The Hermetron 11-pin hermetic connector is a panel-mount electrical connector engineered for reliable signal transmission in hermetically sealed environments. It combines glass-to-metal and GlassTomer™ sealing technologies, providing structural integrity and environmental isolation against moisture, gases, and pressure differentials across an operating range of -55°C to +225°C. The Stainless Steel 303 housing delivers corrosion resistance and mechanical durability under vibration and thermal cycling. Custom pin configurations are available for systems with specific contact requirements.
- Hermetic sealing using glass-to-metal and GlassTomer™ technologies
- Hermeticity better than 1×10⁻⁹ cc/sec @ 1 atmos
- 11 radius pin contacts for stable electrical connectivity
- Stainless Steel 303 housing for corrosion resistance
- Operating temperature range from -55°C to +225°C
- Customizable pin layouts available (18, 20, 27, 34)
Available in 18-pin, 20-pin, 27-pin, 34-pin, and custom-made options.
All configurations share the same product characteristics and materials, with variations only in size.
- Aerospace – avionics housings, flight data recorders
- Defense – missile guidance units, ruggedized communication systems
- Medical – surgical imaging systems, diagnostic equipment
- Vacuum systems – vacuum chambers, analytical instrumentation
- Industrial – high-reliability sensors in harsh environments
Technical Specifications
Parameter
Value
Number of pins
11
Pin type
Radius pins
Housing Material
Stainless Steel 303
Mounting Type
Panel Mount
Sealing Method
Glass-to-metal + GlassTomer™
Operating Temperature
-55°C to +225°C
Hermeticity
Better than 1×10⁻⁹ cc/sec @ 1 atmos
Send us your requirements
Whether you need pricing for this product or a solution engineered to your exact specifications, we’d be happy to help.
Custom pin configurations, materials, sealing methods and production volumes available.
