Hermetic Feedthroughs

Explore Hermetron’s complete range of hermetic feedthroughs engineered for mission-critical applications in aerospace, defense, medical devices, and energy systems. Use the filters below to find feedthroughs by specifications, or contact our engineering team for custom solutions.

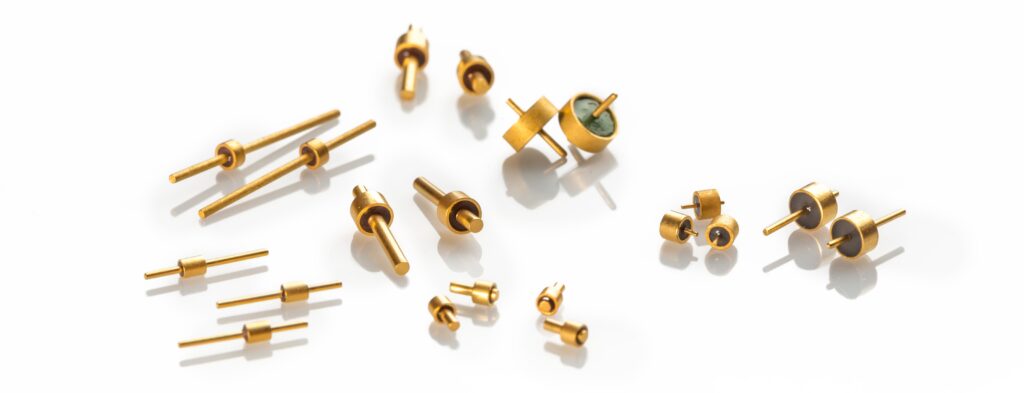

Assorted Hermetron hermetic feedthroughs including DC, power, and capacitor glass-to-metal seals for mission-critical applications.

Filter by Specifications

Showing all 155 products
Part Number 3D Model End Pin Type Material Pin Ø "d" Leg 1 "L1" Leg 2 "L2" Body Height Body OD "D" Plating Description Body Type Pin Isolation Quote
PH01001-0000 View in 3D RS Kovar 0.020 0.197 0.217 0.081 0.092 Soft Gold DC FeedThru H Flanged Glass-to-Metal Request Quote
PH01007-0000 View in 3D SS Steel 12L14 0.030 0.272 0.425 0.093 0.095 Tin FeedThru Flanged Glass-to-Metal Request Quote
PH01009-0000 View in 3D RS Steel 12L14 0.030 0.097 0.200 0.093 0.118 Tin FeedThru Flanged Glass-to-Metal Request Quote
PH01015-0000 View in 3D SS Steel 12L14 0.018 0.211 0.260 0.054 0.085 Tin FeedThru Flanged Glass-to-Metal Request Quote
PH01025-0000 View in 3D SS Steel 12L14 0.018 0.605 0.961 0.054 0.085 Tin FeedThru Flanged Glass-to-Metal Request Quote
PH01026-0000 View in 3D SS Steel 12L14 0.024 0.224 0.249 0.055 0.110 Tin DC Feedthrough terminal Flanged Glass-to-Metal Request Quote
PH01032-0000 View in 3D RR Steel 12L14 0.030 0.205 0.350 0.075 0.138 Tin FeedThru Flanged Glass-to-Metal Request Quote
PH01047-0000 View in 3D RR Steel 12L14 0.030 0.208 0.350 0.062 0.105 Tin FeedThru Flanged Glass-to-Metal Request Quote
PH01060-0000 View in 3D RS Brass 0.030 0.100 0.200 0.055 0.094 Tin Terminal Feedthru GND Flanged Terminal Ground Request Quote
PH01073-0000 View in 3D RR Steel 12L14 0.030 0.212 0.325 0.093 0.118 Tin FeedThru Flanged Glass-to-Metal Request Quote
PH01102-0000 View in 3D SS Brass 0.030 0.130 0.105 0.055 0.085 Tin Terminal FeedThru Ground Flanged Terminal Ground Request Quote
PH01103-0000 View in 3D SS Brass 0.030 0.100 0.250 0.074 0.080 Hard Gold Terminal FeedThru Ground Flanged Terminal Ground Request Quote
PH01104-0000 View in 3D SS Brass 0.030 0.050 0.085 0.074 0.080 Hard Gold Terminal FeedThru Ground Flanged Terminal Ground Request Quote
PH01107-0000 View in 3D RS Steel 12L14 0.030 0.217 0.330 0.062 0.090 Hard Gold DC FeedThru Flanged Glass-to-Metal Request Quote
PH01108-0000 View in 3D SS Steel 12L14 0.030 0.251 0.178 0.054 0.085 Tin DC FeedThru Flanged Glass-to-Metal Request Quote
PH01109-0000 View in 3D RR Steel 12L14 0.030 0.425 0.272 0.093 0.118 Soft Gold DC FeedThru Flanged Glass-to-Metal Request Quote
PH01111-0000 View in 3D SS Steel 12L14 0.030 0.177 0.122 0.078 0.102 Hard Gold Terminal FeedThru Flanged Glass-to-Metal Request Quote
PH01112-0000 View in 3D FS Kovar 0.060 0.310 0.092 0.070 0.175 Soft Gold Glass to Metal seal pin Flanged Glass-to-Metal Request Quote
PH01113-0000 View in 3D SS Brass 0.030 0.080 0.100 0.069 0.076 Soft Gold Ground FeedThru Straight Terminal Ground Request Quote
PH01115-0000 View in 3D SP Kovar 0.080 0.162 0.338 0.070 0.175 Soft Gold FeedThru 16AMP Flanged Glass-to-Metal Request Quote
PH01116-0000 View in 3D FS Kovar 0.030 0.118 0.468 0.063 0.100 Soft Gold Glass Bead Straight Glass-to-Metal Request Quote
PH01117-0000 View in 3D SS Kovar 0.030 0.185 0.195 0.055 0.102 Tin FeedThru K1021-SS30R-MF Flanged Glass-to-Metal Request Quote
PH01118-0000 View in 3D SS Kovar 0.040 0.071 0.118 0.075 0.145 Hard Gold Single FeedThru Flanged Glass-to-Metal Request Quote
PH01119-0000 View in 3D RS Steel 12L14 0.030 0.178 0.196 0.054 0.085 Tin FeedThru Flanged Glass-to-Metal Request Quote
PH01120-0000 View in 3D ST Kovar 0.040 0.090 0.015 0.062 0.125 Tin Terminal FeedThru Tubular Hermetic Flanged Glass-to-Metal Request Quote
PH01121-0000 View in 3D SP Kovar 0.040 0.130 0.118 0.079 0.145 Hard Gold Clear Cone Glass Flanged Glass-to-Metal Request Quote
PH01122-0000 View in 3D SS Steel 12L14 0.030 0.080 0.100 0.070 0.076 Soft Gold Ground FeedThru Straight Terminal Ground Request Quote
PH01123-0000 View in 3D SS Steel 12L14 0.030 0.178 0.250 0.054 0.085 Tin Terminal pin meniscus free Flanged Glass-to-Metal Request Quote
PH03002-0000 View in 3D RS Kovar 0.040 0.031 0.118 0.027 0.071 Soft Gold Kovar Pin Straight Terminal Ground Request Quote
PH03012-0000 View in 3D RR Kovar 0.030 0.354 0.059 0.012 0.047 Hard Gold Pin Gatter Kovar Gold plated Straight Terminal Ground Request Quote
PH04100-0000 View in 3D SS Kovar 0.030 0.150 0.090 0.055 0.067 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH04101-0000 View in 3D SS Kovar 0.025 0.011 0.059 0.045 0.060 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH04102-0000 View in 3D SS Kovar 0.025 0.040 0.100 0.045 0.060 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH04103-0000 View in 3D SS Kovar 0.025 0.173 0.197 0.040 0.075 Soft Gold DC FeedThru Straight Glass-to-Metal Request Quote
PH04104-0000 View in 3D SS Kovar 0.025 0.118 0.200 0.040 0.075 Soft Gold DC FeedThru Straight Glass-to-Metal Request Quote
PH04105-0000 View in 3D SS Kovar 0.025 0.066 0.254 0.045 0.060 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH04106-0000 View in 3D RS Kovar 0.025 0.150 0.060 0.040 0.075 Soft Gold DC FeedThru Straight Glass-to-Metal Request Quote
PH04107-0000 View in 3D RS Kovar 0.015 0.200 0.060 0.060 0.101 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH04108-0000 View in 3D SS Kovar 0.018 0.066 0.238 0.055 0.076 Soft Gold DC FeedThru Straight Glass-to-Metal Request Quote
PH04109-0000 View in 3D SS Kovar 0.025 0.125 0.125 0.045 0.060 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH04110-0000 View in 3D RS Kovar 0.025 0.150 0.128 0.040 0.075 Soft Gold DC FeedThru Straight Glass-to-Metal Request Quote
PH04111-0000 View in 3D SS Kovar 0.025 0.118 0.142 0.040 0.075 Soft Gold DC FeedThru Straight Glass-to-Metal Request Quote
PH04112-0000 View in 3D SS Kovar 0.012 0.050 0.130 0.055 0.076 Soft Gold RF Feedthru 50 Ohm Straight Glass-to-Metal Request Quote
PH04113-0000 View in 3D SS Kovar 0.025 0.119 0.150 0.045 0.060 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH04114-0000 View in 3D RR Kovar 0.018 0.072 0.180 0.060 0.111 Hard Gold FeedThru Straight Glass-to-Metal Request Quote
PH04115-0000 View in 3D RR Kovar 0.015 0.180 0.070 0.063 0.101 Hard Gold FeedThru Straight Glass-to-Metal Request Quote
PH04116-0000 View in 3D RS Kovar 0.019 0.070 0.300 0.060 0.159 Hard Gold RF Feedthru 50 Ohm Straight Glass-to-Metal Request Quote
PH04117-0000 View in 3D SS Kovar 0.015 0.044 0.240 0.063 0.101 Hard Gold RF Feedthru 50 Ohm Straight Glass-to-Metal Request Quote
PH04118-0000 View in 3D RS Kovar 0.015 0.150 0.370 0.063 0.101 Hard Gold RF Feedthru 50 Ohm Straight Glass-to-Metal Request Quote
PH04119-0000 View in 3D RS Kovar 0.030 0.215 0.340 0.055 0.067 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH04120-0000 View in 3D SS Kovar 0.030 0.400 0.060 0.055 0.067 Soft Gold Terminal Feedthru Straight Glass-to-Metal Request Quote
PH04121-0000 View in 3D NH Kovar 0.019 0.030 0.225 0.040 0.050 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH04122-0000 View in 3D SS Kovar 0.018 0.272 0.304 0.040 0.050 Soft Gold SUB MODULE DC BEAD Straight Glass-to-Metal Request Quote
PH04123-0000 View in 3D RR Kovar 0.020 0.270 0.288 0.060 0.050 Soft Gold SUB MODULE DC BID Straight Glass-to-Metal Request Quote
PH06010-0000 View in 3D SS Kovar 0.030 0.225 0.175 0.110 0.156 Soft Gold Feedthru Capacitor 5000pf Flanged Glass-to-Metal Request Quote
PH06011-0000 View in 3D SS Kovar 0.032 0.050 0.050 0.110 0.128 Soft Gold FeedThru Capacitor 15000pF Flanged Glass-to-Metal Request Quote
PH8377-01-0000 View in 3D SS Kovar 0.030 0.066 0.254 0.045 0.060 Soft Gold Terminal Feedthru Straight Glass-to-Metal Request Quote
PH8377-02-0000 View in 3D SS Kovar 0.030 0.051 0.040 0.045 0.060 Feedthru terminal gold plated Straight Glass-to-Metal Request Quote
PH8377-03-0000 View in 3D SS Kovar 0.040 0.177 0.090 0.063 0.101 Soft Gold Power Pin Feedthrough Straight Glass-to-Metal Request Quote
PH8377-04-0000 View in 3D SS Kovar 0.030 0.040 0.013 0.045 0.060 DC FeedThru Straight Glass-to-Metal Request Quote
PH8377-05-0000 View in 3D SS Kovar 0.030 0.175 0.045 0.045 0.060 Hard Gold FeedThru Pin Straight Glass-to-Metal Request Quote
PH8377-06-0000 View in 3D SS Kovar 0.018 0.176 0.096 0.060 0.050 Soft Gold Modified FeedThru Straight Glass-to-Metal Request Quote
PH8377-07-0000 View in 3D SS Kovar 0.030 0.119 0.150 0.045 0.060 Terminal Feedthru Straight Glass-to-Metal Request Quote
PH8377-08-0000 View in 3D SS Kovar 0.030 0.090 0.175 0.045 0.060 Terminal Feedthru Straight Glass-to-Metal Request Quote
PH8377-09-0000 View in 3D SS Kovar 0.030 0.011 0.069 0.045 0.060 Terminal Feedthru Straight Glass-to-Metal Request Quote
PH8377-10-0000 View in 3D SS Kovar 0.030 0.119 0.167 0.045 0.060 Feedthru terminal gold plated Straight Glass-to-Metal Request Quote
PH8377-11-0000 View in 3D RS Kovar 0.040 0.020 0.126 0.063 0.101 Soft Gold DC FeedThru Straight Glass-to-Metal Request Quote
PH8377-12-0000 View in 3D RS Kovar 0.018 0.020 0.126 0.060 0.050 Soft Gold DC FeedThru Straight Glass-to-Metal Request Quote
PH8377-13-0000 View in 3D RS Kovar 0.015 0.035 0.098 0.063 0.101 Soft Gold RF FeedThru Straight Glass-to-Metal Request Quote
PH8377-14-0000 View in 3D RS Kovar 0.015 0.193 0.043 0.063 0.101 Soft Gold RF Bead Cal Straight Glass-to-Metal Request Quote
PH8377-15-0000 View in 3D SS Kovar 0.030 0.240 0.150 0.040 0.075 Soft Gold Terminal feedthru DC Straight Glass-to-Metal Request Quote
PH8377-16-0000 View in 3D SS Kovar 0.030 0.188 0.119 0.045 0.060 Soft Gold Term. FeedThru pin Ø0.030" Straight Glass-to-Metal Request Quote
PH8377-17-0000 View in 3D SS Kovar 0.025 0.250 0.250 0.063 0.101 Soft Gold FeedThru DC Straight Glass-to-Metal Request Quote
PH8377-18-0000 View in 3D SS Kovar 0.018 0.050 0.150 0.060 0.158 Straight Glass-to-Metal Request Quote
PH8377-19-0000 View in 3D SS Kovar 0.012 0.030 0.030 0.055 0.075 Soft Gold Glass bead 50 ohm gold plated Straight Glass-to-Metal Request Quote
PH8377-20-0000 View in 3D SS Kovar 0.012 0.035 0.015 0.055 0.075 Glass bead 50 ohm gold plated Straight Glass-to-Metal Request Quote
PH8377-21-0000 View in 3D SS Kovar 0.025 0.200 0.400 0.040 0.075 Soft Gold DC FeedThru Straight Glass-to-Metal Request Quote
PH8377-22-0000 View in 3D SS Kovar 0.020 0.354 0.177 0.075 0.093 Straight Glass-to-Metal Request Quote
PH8377-23-0000 View in 3D SS Kovar 0.025 0.256 0.236 0.040 0.075 Soft Gold DC FeedThru Pin Straight Glass-to-Metal Request Quote
PH8377-24-0000 View in 3D SS Kovar 0.020 0.346 0.079 0.060 0.050 Soft Gold DC FeedThru small Straight Glass-to-Metal Request Quote
PH8377-25-0000 View in 3D SS Kovar 0.040 0.232 0.079 0.063 0.101 Soft Gold Power FeedThru Straight Glass-to-Metal Request Quote
PH8377-26-0000 View in 3D RS Kovar 0.018 0.160 0.072 0.060 0.110 FeedThru Straight Glass-to-Metal Request Quote
PH8377-27-0000 View in 3D RS Kovar 0.020 0.055 0.095 0.060 0.157 Glass bead 50 ohm Straight Glass-to-Metal Request Quote
PH8377-28-0000 View in 3D SS Kovar 0.018 0.250 0.250 0.060 0.050 Soft Gold Feedthru terminal gold plated Straight Glass-to-Metal Request Quote
PH8377-29-0000 View in 3D RR Kovar 0.035 0.090 0.291 0.069 0.234 Hard Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-30-0000 View in 3D SS Kovar 0.018 0.125 0.300 0.040 0.050 Soft Gold Terminal 50 OHM FeedThru Straight Glass-to-Metal Request Quote
PH8377-31-0000 View in 3D SS Kovar 0.018 0.120 0.105 0.040 0.050 Soft Gold Glass Seal FeedThru Term Straight Glass-to-Metal Request Quote
PH8377-32-0000 View in 3D SS Kovar 0.012 0.043 0.011 0.055 0.076 Glass Bead P1 50 Ohm Straight Glass-to-Metal Request Quote
PH8377-33-0000 View in 3D SS Kovar 0.012 0.045 0.013 0.055 0.076 Soft Gold Glass Bead P2 50 Ohm Straight Glass-to-Metal Request Quote
PH8377-34-0000 View in 3D SS Kovar 0.012 0.039 0.017 0.055 0.076 Glass Bead P3 50 Ohm Straight Glass-to-Metal Request Quote
PH8377-35-0000 View in 3D SS Kovar 0.012 0.035 0.015 0.055 0.076 Glass Bead P4 50 Ohm Straight Glass-to-Metal Request Quote
PH8377-36-0000 View in 3D SS Kovar 0.012 0.070 0.012 0.055 0.076 Glass Bead P5 50 Ohm Straight Glass-to-Metal Request Quote
PH8377-37-0000 View in 3D SS Kovar 0.025 0.122 0.170 0.045 0.060 Soft Gold FeedThru DC - P4 Straight Glass-to-Metal Request Quote
PH8377-38-0000 View in 3D RS Kovar 0.030 0.140 0.045 0.045 0.060 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-39-0000 View in 3D SS Kovar 0.018 0.099 0.035 0.040 0.050 Soft Gold Glass Seal FeedThru Term Straight Glass-to-Metal Request Quote
PH8377-40-0000 View in 3D SS Kovar 0.025 0.254 0.107 0.045 0.060 Soft Gold Term. FeedThru pin Ø0.025" Straight Glass-to-Metal Request Quote
PH8377-41-0000 View in 3D RS Kovar 0.030 0.094 0.032 0.045 0.060 Soft Gold Term. FeedThru pin Ø0.030" Straight Glass-to-Metal Request Quote
PH8377-42-0000 View in 3D SS Kovar 0.025 0.122 0.180 0.045 0.060 Soft Gold DC FeedThru Straight Glass-to-Metal Request Quote
PH8377-43-0000 View in 3D SS Kovar 0.018 0.177 0.079 0.040 0.050 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-44-0000 View in 3D SS Kovar 0.018 0.177 0.098 0.040 0.050 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-45-0000 View in 3D SS Kovar 0.018 0.105 0.061 0.040 0.050 Soft Gold Terminal FeedThru Straight Glass-to-Metal Request Quote
PH8377-46-0000 View in 3D SS Kovar 0.025 0.300 0.125 0.045 0.060 Soft Gold Terminal FeedThru Straight Glass-to-Metal Request Quote
PH8377-47-0000 View in 3D SS Kovar 0.030 0.105 0.075 0.070 0.076 Soft Gold Terminal Feedthru Straight Glass-to-Metal Request Quote
PH8377-48-0000 View in 3D RS Kovar 0.030 0.117 0.032 0.045 0.060 Soft Gold Term. FeedThru Dia Ø0.030" Straight Glass-to-Metal Request Quote
PH8377-49-0000 View in 3D RS Kovar 0.030 0.070 0.180 0.055 0.067 Soft Gold Term. FeedThru Straight Glass-to-Metal Request Quote
PH8377-50-0000 View in 3D RS Kovar 0.030 0.150 0.180 0.055 0.067 Soft Gold Terminal FeedThru Straight Glass-to-Metal Request Quote
PH8377-51-0000 View in 3D SS Kovar 0.018 0.102 0.097 0.060 0.050 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-52-0000 View in 3D RS Kovar 0.030 0.145 0.140 0.055 0.067 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-53-0000 View in 3D RS Kovar 0.030 0.140 0.100 0.055 0.067 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-54-0000 View in 3D SS Kovar 0.024 0.130 0.119 0.045 0.060 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-55-0000 View in 3D NH Kovar 0.018 0.050 0.250 0.040 0.050 Soft Gold Nail head Feedthru Straight Glass-to-Metal Request Quote
PH8377-56-0000 View in 3D RS Kovar 0.036 0.417 0.098 0.126 0.206 Hard Gold Terminal 50 OHM FeedThru Straight Glass-to-Metal Request Quote
PH8377-57-0000 View in 3D RS Kovar 0.030 0.200 0.140 0.055 0.067 Soft Gold Term. FeedThru Straight Glass-to-Metal Request Quote
PH8377-58-0000 View in 3D SS Kovar 0.030 0.235 0.235 0.045 0.060 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-59-0000 View in 3D SS Kovar 0.015 0.220 0.094 0.063 0.101 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-60-0000 View in 3D RS Kovar 0.030 0.370 0.110 0.055 0.067 Soft Gold Terminal FeedThru Straight Glass-to-Metal Request Quote
PH8377-61-0000 View in 3D SS Kovar 0.012 0.030 0.020 0.055 0.076 Soft Gold Glass bead 50 ohm gold plated Straight Glass-to-Metal Request Quote
PH8377-62-0000 View in 3D RR Kovar 0.030 0.228 0.140 0.055 0.067 Soft Gold FeedThru Dia. 0.065"X 0.030" Straight Glass-to-Metal Request Quote
PH8377-63-0000 View in 3D RR Kovar 0.018 0.080 0.072 0.060 0.111 Hard Gold SMA Glass Bead Straight Glass-to-Metal Request Quote
PH8377-64-0000 View in 3D SS Kovar 0.030 0.225 0.170 0.055 0.065 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-65-0000 View in 3D RR Kovar 0.020 0.180 0.040 0.040 0.050 Soft Gold Terminal FeedThru Straight Glass-to-Metal Request Quote
PH8377-66-0000 View in 3D SS Kovar 0.020 0.045 0.010 0.060 0.159 Soft Gold Glass Bead 50 Ohm Straight Glass-to-Metal Request Quote
PH8377-67-0000 View in 3D RS Kovar 0.020 0.100 0.070 0.060 0.159 Soft Gold Glass Bead 50 Ohm Straight Glass-to-Metal Request Quote
PH8377-68-0000 View in 3D RS Kovar 0.020 0.100 0.060 0.060 0.159 Soft Gold Glass Bead 50 Ohm Straight Glass-to-Metal Request Quote
PH8377-69-0000 View in 3D RS Kovar 0.020 0.070 0.070 0.060 0.159 Soft Gold Glass Bead 50 Ohm Straight Glass-to-Metal Request Quote
PH8377-70-0000 View in 3D RS Kovar 0.018 0.072 0.055 0.060 0.111 Soft Gold Glass Bead Straight Glass-to-Metal Request Quote
PH8377-71-0000 View in 3D RS Kovar 0.015 0.090 0.072 0.063 0.101 Soft Gold RF FeedThru 50 Ohm Straight Glass-to-Metal Request Quote
PH8377-72-0000 View in 3D RR Kovar 0.012 0.059 0.031 0.055 0.076 Soft Gold K CONN SA Straight Glass-to-Metal Request Quote
PH8377-73-0000 View in 3D SS Kovar 0.025 0.119 0.098 0.045 0.060 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-74-0000 View in 3D SS Kovar 0.025 0.040 0.030 0.045 0.060 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-75-0000 View in 3D SS Kovar 0.018 0.300 0.180 0.040 0.050 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-76-0000 View in 3D SS Kovar 0.018 0.330 0.180 0.040 0.050 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-77-0000 View in 3D SS Kovar 0.012 0.040 0.040 0.055 0.076 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-78-0000 View in 3D RS Kovar 0.018 0.048 0.091 0.040 0.050 Soft Gold DC FeedThru Straight Glass-to-Metal Request Quote
PH8377-79-0000 View in 3D RS Kovar 0.040 0.170 0.180 0.063 0.101 Soft Gold DC FeedThru Straight Glass-to-Metal Request Quote
PH8377-80-0000 View in 3D RS Kovar 0.040 0.060 0.125 0.063 0.101 Soft Gold DC FeedThru Straight Glass-to-Metal Request Quote
PH8377-81-0000 View in 3D SS Kovar 0.025 0.200 0.083 0.040 0.075 Soft Gold DC FeedThru Straight Glass-to-Metal Request Quote
PH8377-82-0000 View in 3D SS Kovar 0.030 0.105 0.210 0.055 0.067 Soft Gold Terminal FeedThru Straight Glass-to-Metal Request Quote
PH8377-83-0000 View in 3D SS Kovar 0.018 0.050 0.250 0.060 0.050 Soft Gold DC FeedThru Straight Glass-to-Metal Request Quote
PH8377-84-0000 View in 3D RS Kovar 0.030 0.070 0.140 0.055 0.067 Soft Gold Terminal FeedThru Straight Glass-to-Metal Request Quote
PH8377-85-0000 View in 3D RS Kovar 0.015 0.060 0.079 0.060 0.101 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-86-0000 View in 3D SS Kovar 0.030 0.045 0.210 0.055 0.067 Soft Gold Term. FeedThru Straight Glass-to-Metal Request Quote
PH8377-87-0000 View in 3D NH Kovar 0.018 0.065 0.090 0.040 0.051 Soft Gold Terminal FeedThru Straight Glass-to-Metal Request Quote
PH8377-88-0000 View in 3D RR Kovar 0.015 0.084 0.370 0.063 0.101 Glass bead 50 ohm Straight Glass-to-Metal Request Quote
PH8377-89-0000 View in 3D RS Kovar 0.018 0.094 0.100 0.060 0.111 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-90-0000 View in 3D RS Kovar 0.018 0.100 0.250 0.060 0.111 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-91-0000 View in 3D SS Kovar 0.030 0.155 0.240 0.055 0.067 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-92-0000 View in 3D RS Kovar 0.030 0.080 0.140 0.055 0.067 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-93-0000 View in 3D RS Kovar 0.015 0.060 0.100 0.060 0.101 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-94-0000 View in 3D RS Kovar 0.018 0.072 0.128 0.060 0.111 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-95-0000 View in 3D SS Kovar 0.030 0.200 0.400 0.040 0.076 Soft Gold DC FeedThru Straight Glass-to-Metal Request Quote
PH8377-96-0000 View in 3D SS Kovar 0.030 0.110 0.470 0.055 0.067 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-97-0000 View in 3D SS Kovar 0.025 0.051 0.040 0.045 0.060 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-98-0000 View in 3D SS Kovar 0.025 0.175 0.090 0.045 0.060 Soft Gold FeedThru Straight Glass-to-Metal Request Quote
PH8377-99-0000 View in 3D SS Kovar 0.025 0.040 0.013 0.045 0.060 Soft Gold FeedThru Straight Glass-to-Metal Request Quote

Ready to order or need a custom solution? Request a quote for standard products or discuss custom-engineered hermetic feedthroughs tailored to your exact specifications.

Contact Our Engineering Team →

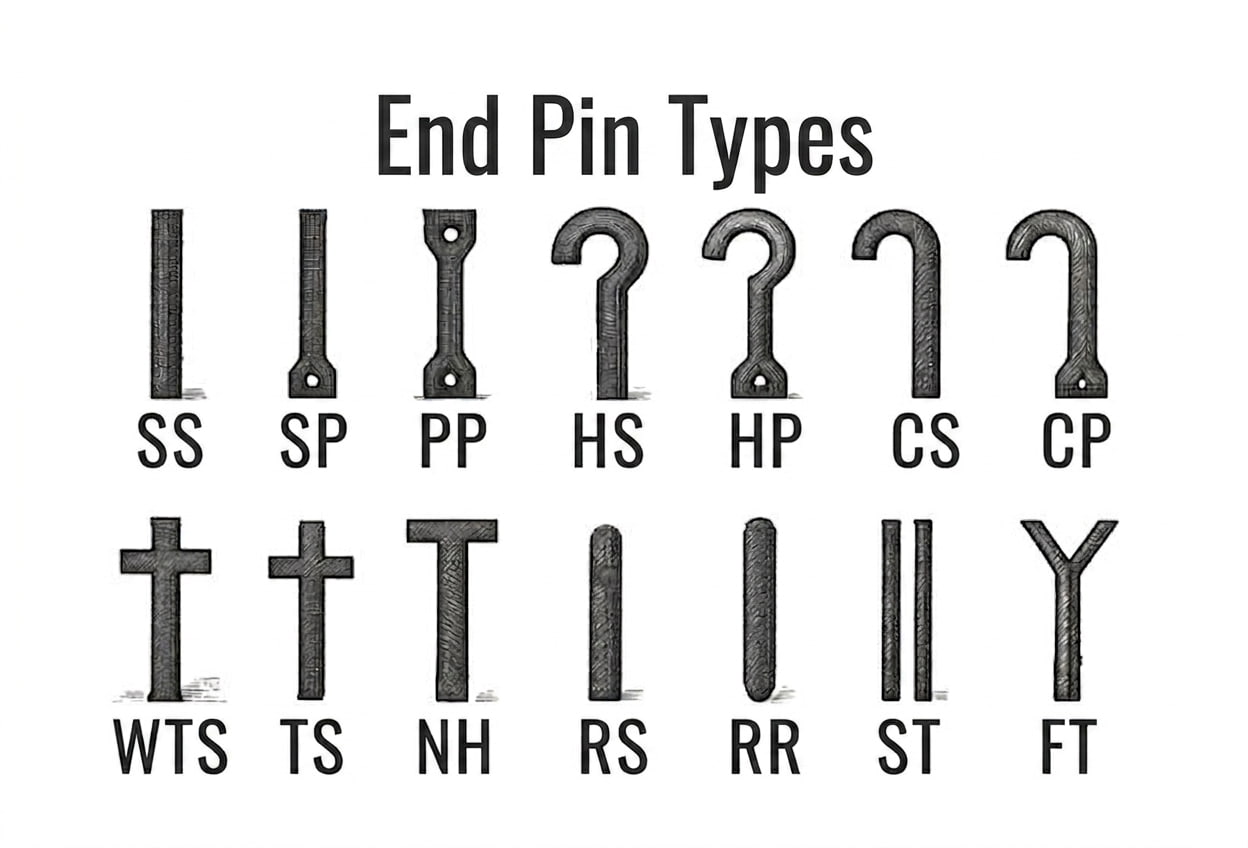

Visual reference guide showing 14 types of hermetic feedthrough end pins with abbreviations: SS, SP, PP, HS, HP, CS, CP, WTS, TS, NH, RS, RR, ST, and FT
End Pin Types Reference Guide - Use this chart to identify which end pin configuration matches your requirements.

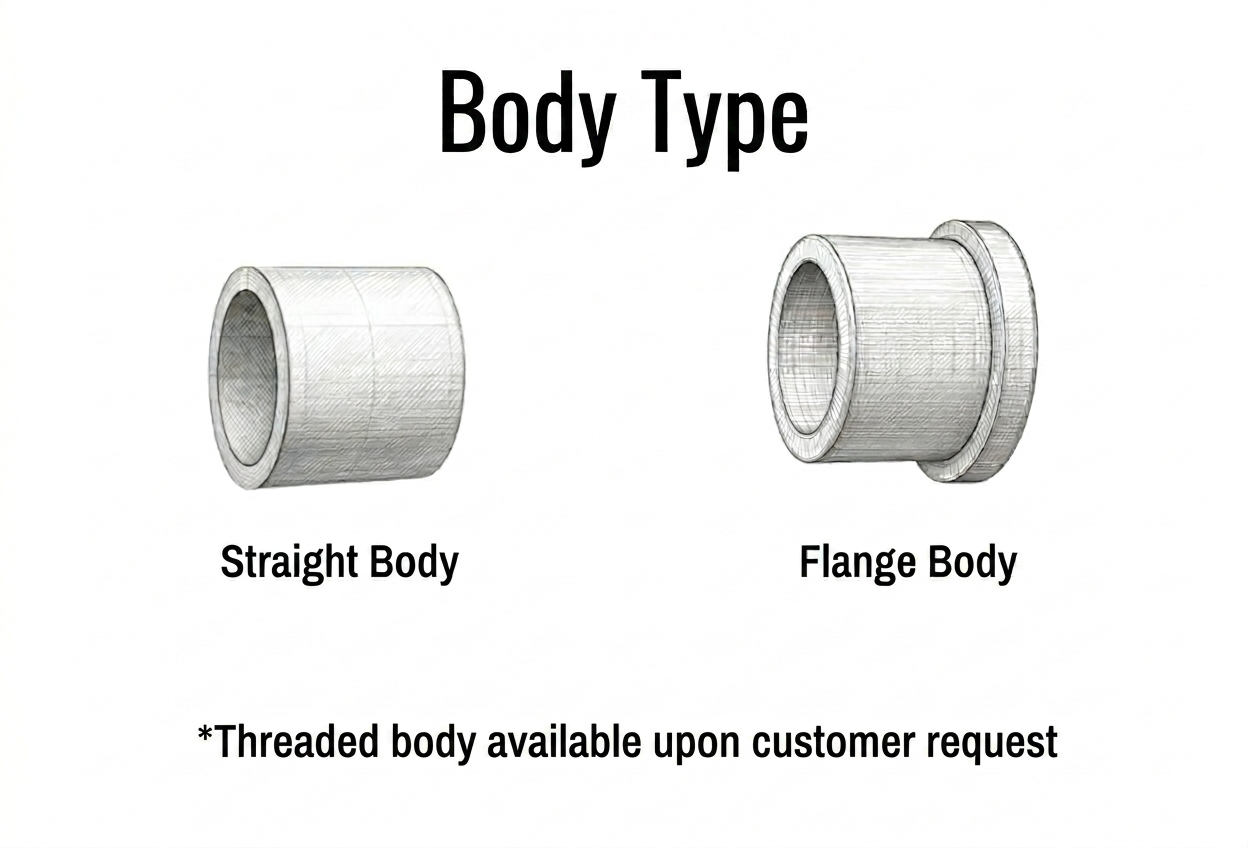

Visual reference guide showing hermetic feedthrough body types
Body Type Reference Guide - Use this chart to identify which body type configuration matches your requirements.
Loading PDF...

Accessibility Toolbar
