Integrating Glass-to-Metal Sealed Feedthroughs
High-performance hermetic TRM box assembly enclosure designed for RF and microwave Transmit/Receive Modules (TRMs). The package integrates glass-to-metal sealed feedthroughs on the sidewall for signal/power routing, enabling secure and ultra-reliable electrical connectivity while maintaining full hermeticity.
The hermetic TRM box assembly is manufactured with gold-plated Kovar or aluminum, providing excellent thermal and EMI performance. The internal cavity supports hybrid microelectronic assemblies, MMICs, and passive components, with layout optimized for low-loss signal paths and thermal dissipation.
- Feedthrough configuration: coaxial, DC, power, fiber
- Housing shape and flange design (round/square/rectangular)
- Surface finishes (passivated, ENIG, AuSn preform ready)
- Insulation resistance: > 1000MΩ
- Hermeticity: Better than 1×10⁻⁹ cc/sec @ 1 atm
- Working temperature: from -65ºC up to +250ºC
- Kovar
- Glass sealing
- Glass plating
- Active Phased Array Radar Systems
- Missile & Seeker Electronics
- Electronic Warfare (EW) Modules
- RF Front-End Subsystems

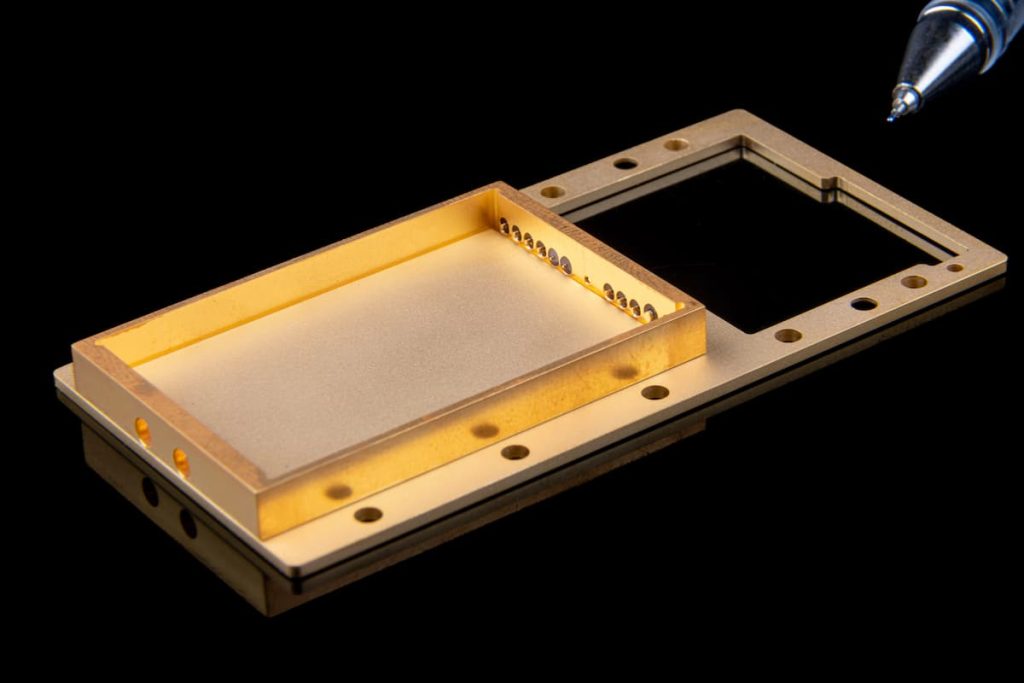

P/N PH08630-0000

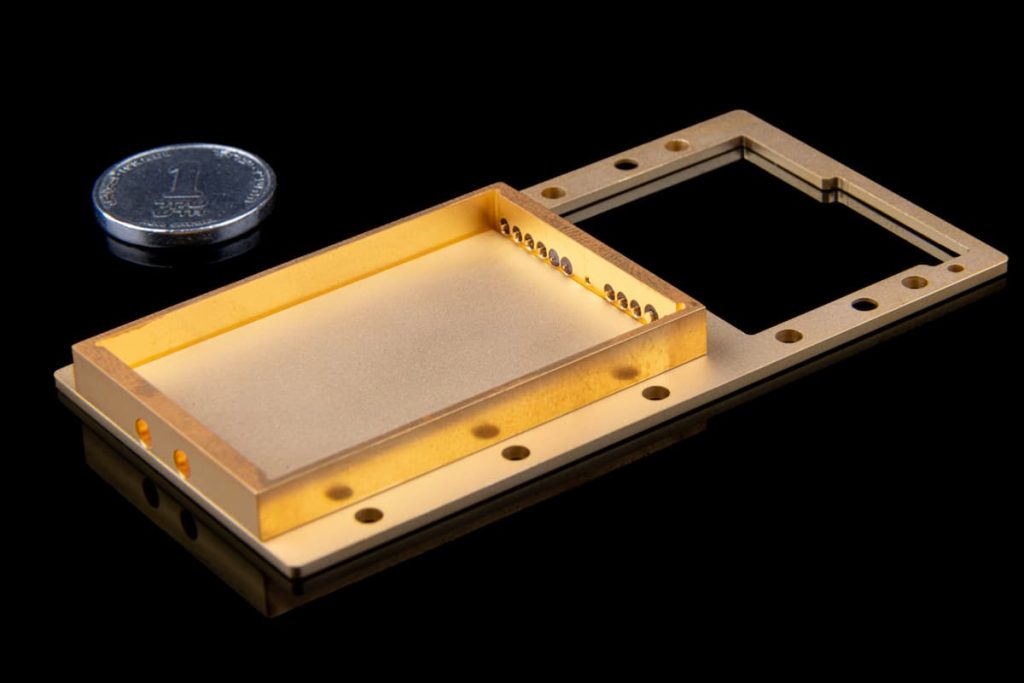

P/N PH08630-0000
