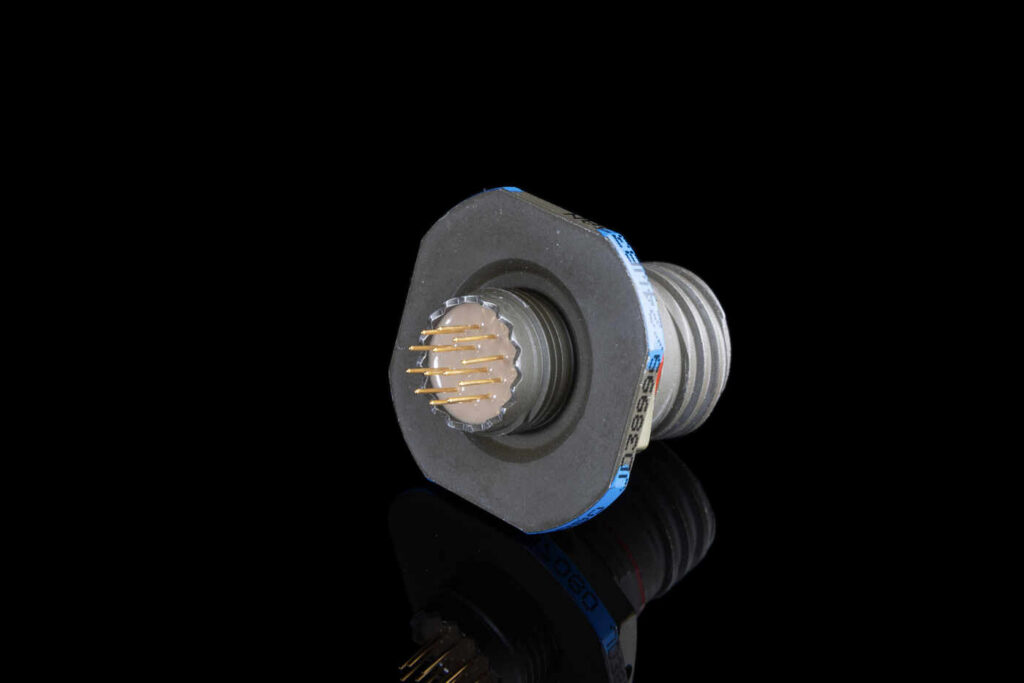

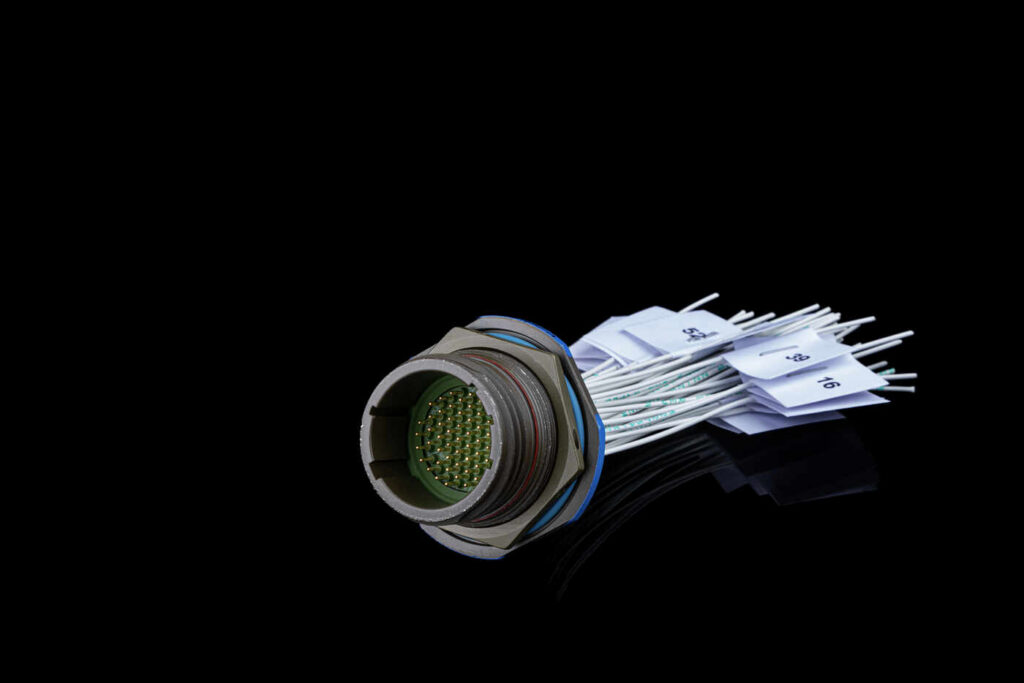

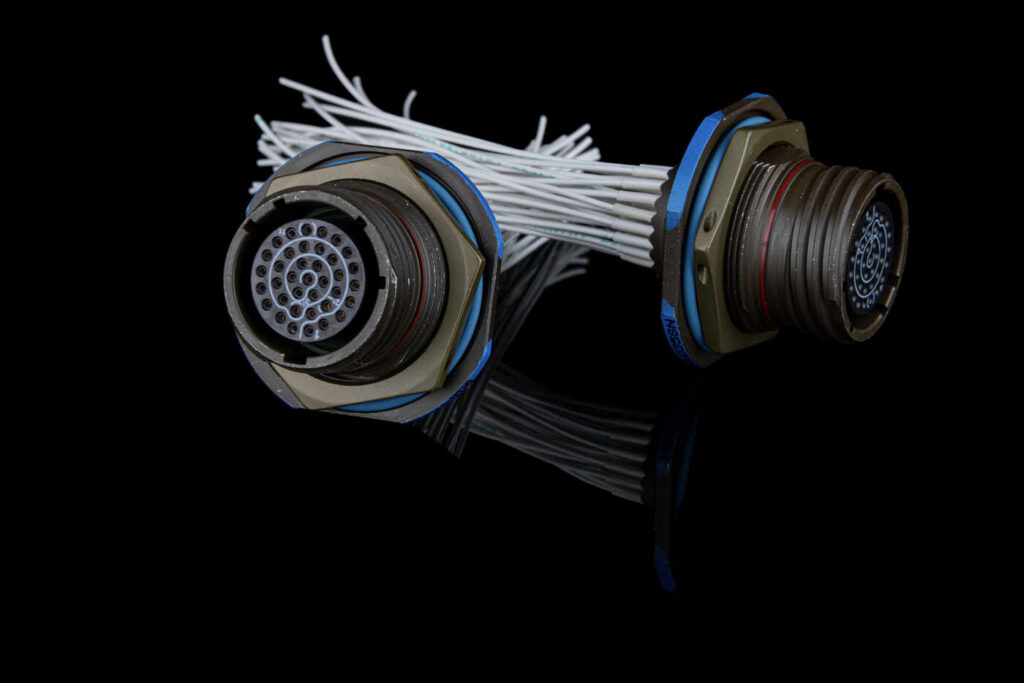

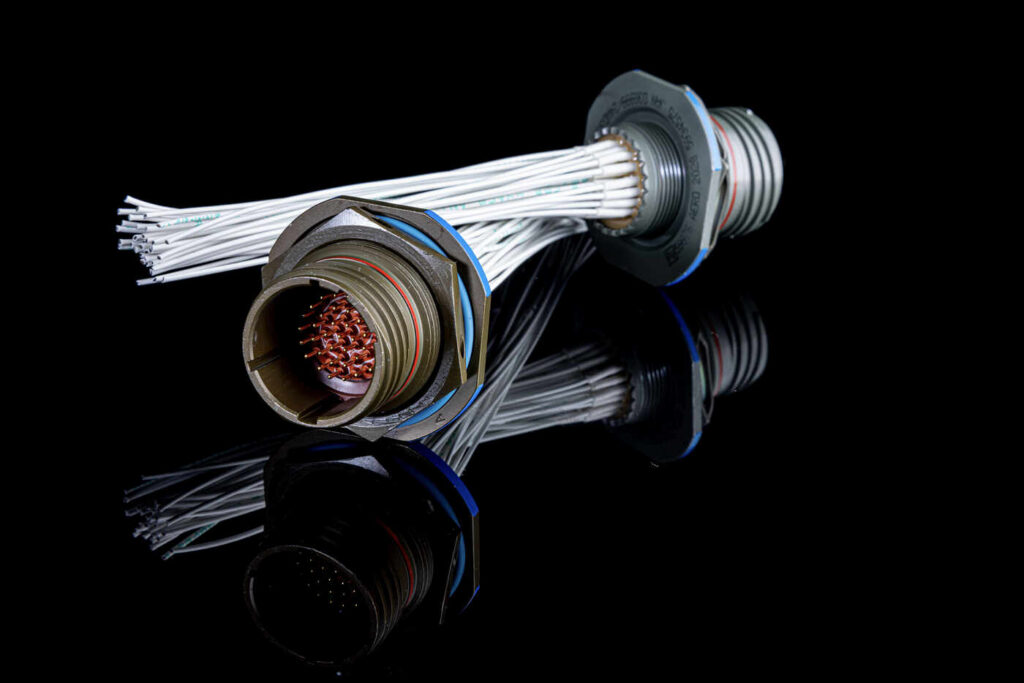

Lightweight Hermetic Connector – D38999 Series

Insulation resistance: &gt; 5000 MΩ
Hermeticity: Better than 1x 10⁻⁸ cc/sec @ 1 atm
Operating temperature: from -55ºC up to +225ºC

GlassTomer™ Sealing Technology |
Aluminum Shell | High Hermeticity

Our Lightweight D38999 Hermetic Connector is a cutting-edge interconnect solution designed for harsh environments requiring both exceptional hermetic sealing and minimal weight. Built with a D38999-compatible aluminum shell, this connector incorporates proprietary GlassTomer™ technology, enabling a robust glass-to-metal seal with helium leak rates as low as 1×10⁻⁸ atm·cc/sec.

Key Features

High-reliability hermetic sealing using advanced GlassTomer™
Lightweight aluminum construction – ideal for aerospace and UAV systems
Designed as a drop-in replacement for Glenair Code Red and Amphenol D38999 Hermetic Series III
Short lead times and high-volume availability

P/N PH08675-0000

Configurations
Materials
Product Characteristics
Applications

Optional No. of Pins – According to Mil-STD-D38999, Shell size A-J, and Pin Configuration.
Termination Options – PC-Tail / Solder Cup / Crimp / Coax (Twin-Pin-Tail)
Optional Class (Material & Finish):
- F = Aluminum shell, electroless nickel finish
- W = Aluminum shell, olive drab cadmium over electroless nickel base
- T = Aluminum shell, nickel flourocarbon polymer finish (consult factory for availability)
- Z = Aluminum shell, zinc nickel finish (consult factory for availability)
- K = Stainless steel shell, passivated, with firewall insert S = Stainless steel shell, electrodeposited nickel, with firewall insert
- BN* = Aluminum shell, black nickel finish, (RoHS), (Aero p/n/ only)
- BZ* = Aluminum nickel bronze shell with standard insert (Aero p/n only)
- ZC* = Aluminum shell, zinc cobalt plating, (RoHS), (Aero p/n only)
